Kenwei هي شركة مصنعة عالمية متخصصة في آلات تعبئة الميزان وآلات الميزان متعددة الرؤوس.

آلة تعبئة وزن السائبة & آلة التعبئة والتغليف 1

آلة تعبئة وزن السائبة & آلة التعبئة والتغليف 2

آلة تعبئة وزن السائبة & آلة التعبئة والتغليف 3

آلة تعبئة وزن السائبة & آلة التعبئة والتغليف 4

آلة تعبئة وزن السائبة & آلة التعبئة والتغليف

نموذج:

JW-AX1

MOQ:

يضع1

الدفع:

L/C, T/T

مكان المنشأ:

الصين

العلامة التجارية:

كينوي

تحديد الرمز:

XL1-2-1

نطاق الوزن:

5 ~ 50 كجم

الدقة:

10-50 جرام

السرعة القصوى:

7~11P/M

لوحة التحكم:

شاشة لمس 7.0 بوصة

خيارات:

الحزام الناقل / سدادة الأكياس

متطلبات الطاقة:

220V / 80W / 50/60HZ / 0.4A

البعد التعبئة (مم):

1250(L)*1150(W)*2280(H)

الوزن الإجمالي:

كغ150

السلطة:

1000W

استفسار

أكتب مراجعة

المواد

304 من الفولاذ المقاوم للصدأ

شهادة

CE, OIML, SGS

التوفر

OEM/ODM

وقت التسليم

7-30 يومًا

منفذ البدء

ميناء تشونغشان

القدرة على العرض

5000 مجموعة / سنة

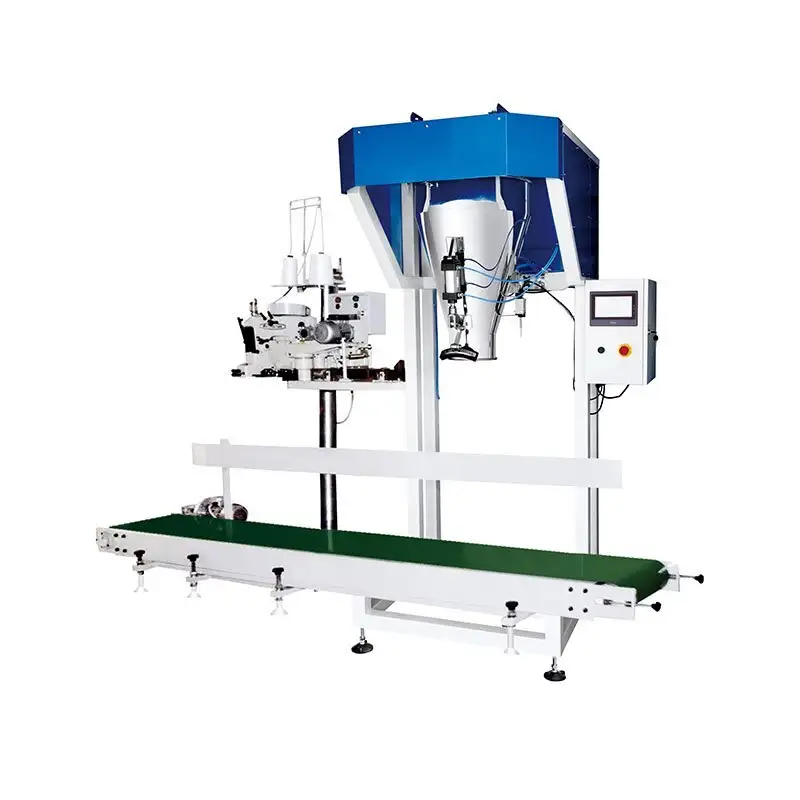

Grain scale is suitable for fast and high-precision weighing of large-weight materials, such as corn, soybean, rice, rice, barley, wheat, and other grain industry materials. The action of feeding, filling and unloading bags of the grain scale is automatically completed by the grain quantitative weighing. The operation of the grain scale is simple. The operator only needs to cover the bags and touch the pocket travel switch.

製品の特徴

01
It’s suitable for weighing material in bulk volume with high speed and high accuracy.
02
User-friendly HMI can be fast and easy to take and store preselected weighting parameters for different weighing ranges.
03
Easy operating. The operator can simply put on the bag and touch the switch then the feeding, filling, and unloading bags can be completed automatically finished.

Kenwei -High-quality Big Weight Bulk Weigher Factory

Kenwei -High-quality Big Weight Bulk Weigher Factory-1

04
The controller and AD module are in CAN bus communication mode, the independent weighing process carried out by the AD module board, reducing controller communication time, make the weighing result feedback process more quickly.
05
Output ports use free port mode design, having a signal test function, easy to know about the equipment failure.
06
Detailed production records statistics functions.

Product Characteristic

Kenwei -High-quality Big Weight Bulk Weigher Factory-2

1.The system uses high-precision loadcell.AD converter module is with operating frequency of 400 times / s,which is high accuracy and good stability.
2.Three feeding level and special control algorithms make the weighing speed more quickly and higher accuracy.

Kenwei -High-quality Big Weight Bulk Weigher Factory-3

3.Automatic entrainment structure, convenient artificial fix bags,it’s safe and more efficient.

Kenwei -High-quality Big Weight Bulk Weigher Factory-4

4.Material contact parts are made of stainless steel, which is especially suitable for food industry make it more health, more environmentally friendly, easy to wash and maintain.

Technical Specification

モデル	JW-AX1
Identify Code	XL1-2-1
Weighing Range	5~50kg
Accuracy	10-50g
Hopper Volume	50L
Max Speed	7~11P/M
Control Panel	7.0’’ Touch Screen
Options	Conveyor Belt /bag sealer
Power Requirement	220V / 80W / 50/60HZ / 0.4A
Packing Dimension(mm)	1250(L)1150(W)2280(H)
Gross Weight	kg150

アプリケーション

Kenwei -High-quality Big Weight Bulk Weigher Factory-5

It’s suitable for weighing corn, soybeans, rice, barley, wheat, buckwheat, peanuts, beans and other small granules in food industry,light industry, chemical industry in bulk weight.
